Product Brief

Capvel-FUEL is a volumetric fuel level sensor designed for precise fuel monitoring in DG sets and vehicle tracking systems.

It addresses critical issues of fuel misuse, pilferage, and wastage to optimize operational costs and asset management.

Product
Description

Capvel-FUEL operates on the capacitance measurement principle to convert fuel level readings into volumetric outputs tailored to various tank shapes.



It features flexible output options and is supported by an intuitive desktop application, Capvel-FUEL-Connect, which simplifies sensor configuration and calibration through guided steps.

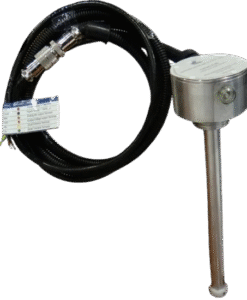

capvel-fuel-volumetric-fuel-level-sensor-1000x1000-removebg-preview

Product
Applications

Fleet management and vehicle tracking

Monitoring fuel consumption, theft prevention, and improving operational efficiency for commercial vehicles, heavy machinery, and moving tankers.

Construction

Fuel monitoring in construction machinery and equipment to optimize fuel use and reduce downtime

Telecommunications

Monitoring and managing fuel for backup generators at telecom towers to ensure uninterrupted power supply critical for mission operations

Oil and Gas

Precise fuel and liquid level monitoring in storage tanks, process tanks, and transport to optimize operations and safety.

Agriculture

Monitoring fuel levels in agricultural equipment such as tractors and irrigation systems to enhance efficiency and reduce fuel-related operational costs

Mining

Real-time fuel monitoring helps manage fuel inventory in remote mining sites, improves productivity by avoiding downtime caused by fuel shortages, and supports predictive maintenance of heavy machinery

Key
benefits

Probe Length

On-site adjustable probe length with cuttable and extensible design for diverse applications

Voltage

Multiple output options including voltage, RS-485 Modbus RTU, RS-232 digital outputs, and analog output compatible with conventional fuel gauges

Safety

IP-67 certified and RoHS compliant for durability and environmental safety

Algorithm

Embedded algorithm for turbulence compensation ensures accurate measurements in rugged conditions

Efficiency

Capability to save and reuse tank configuration profiles across fleets, enhancing calibration efficiency

Accuracy

High measurement accuracy of ±1% full scale level with fast response time (1 to 5 seconds)

Material

Compact and robust aluminum housing and probe materials for long service life

Installation
Types

  • Installation is simplified with the user-friendly Capvel-FUEL-Connect desktop application featuring step-by-step calibration and configuration guidance.
  • Calibration can be performed in two modes: quick calibration via a magnetic key or comprehensive calibration through PC connection.

Mechnical & Technical
Specifications

Power Supply

DC 7-30 V

Power consumption

Maximum 130 mA at 7 V DC

Output

Voltage (adjustable 0.5 - 4.5 V / 0.1 - 4.9 V), digital RS-485 Modbus-RTU / RS-232 ASCII, and analog output compatible with fuel meters

Accuracy

±1% Full Scale Level

Operating Temperature

-20°C to 70°C

Mounting

SAE 5-bolt pattern & 1.5 inch BSP thread, optional SAE 6-bolt flange

Why Choose Our Volumetric Fuel Level Sensor?

The sensor measures fuel level using the capacitance principle and converts it into volumetric data. An advanced embedded algorithm compensates for tank turbulence, ensuring stable and reliable readings under challenging operational environments.
