Product Brief

The Decon ABS-80 is a state-of-the-art radiometric density meter designed for continuous, contactless measurement of density and concentration in various industrial processes. Utilizing advanced gamma radiation technology, it delivers precise and reliable density monitoring in real-time without interrupting production flow.

Product
Description

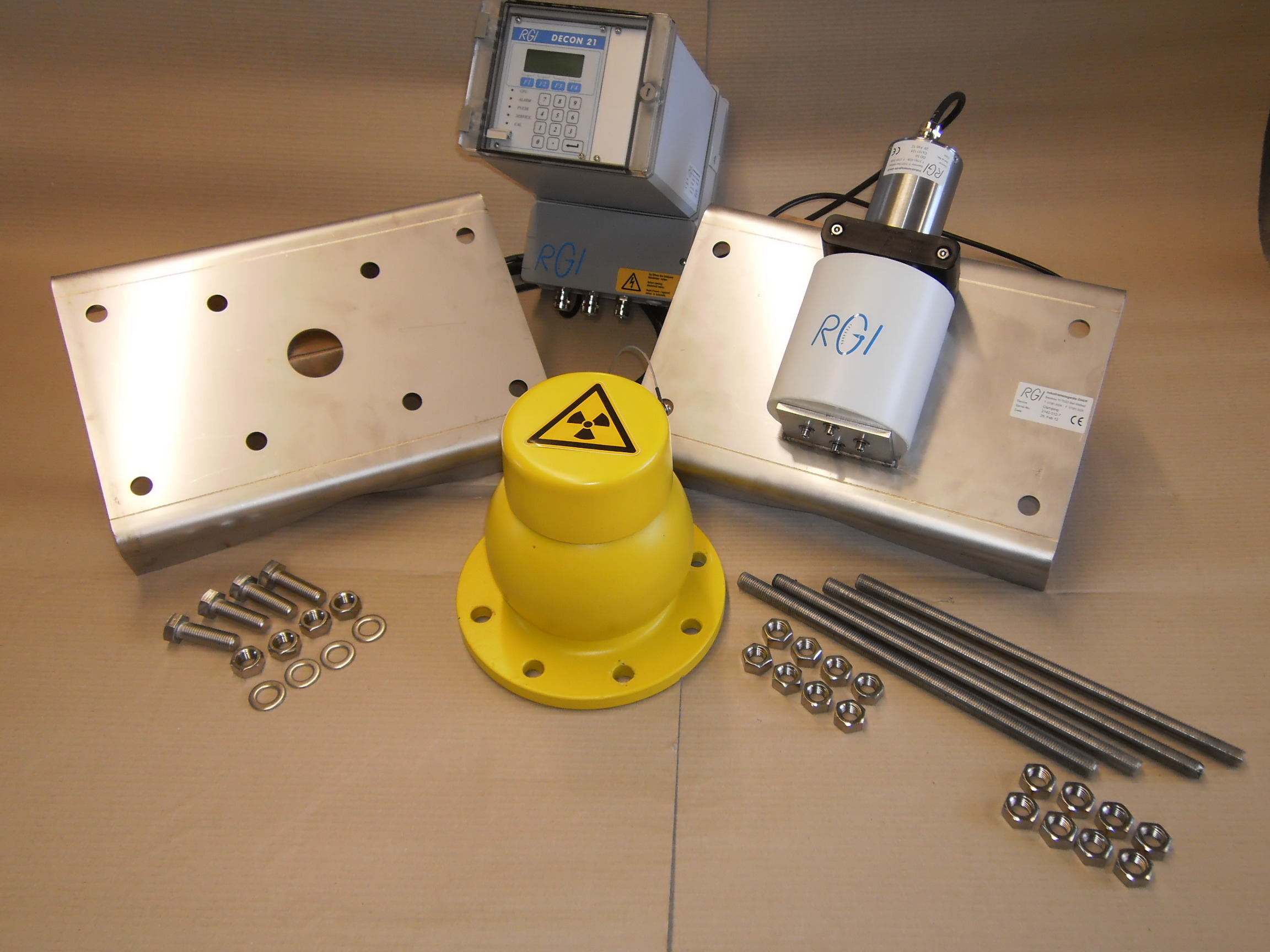

The ABS-80 Online Density Meter employs gamma radiation absorption principles, similar to X-rays, to measure the density of materials passing through a defined measurement path. It accurately detects the average density between the radiation source and detector, enabling exact determination of specific gravity, solid matter concentration, and mixture content without direct contact with the medium.

The device features a rugged design with a sealed radioactive source housed in secure lead shielding and a sensitive scintillation detector system, combined with a sophisticated evaluation unit for real-time digital density output.

online-density-meters

Product
Applications

Mining & Minerals

Measuring bulk density and ash content of coal, ores, and slurries during extraction, processing, and bulk material handling.

Cement & Construction materials

Online density measurement in cement production, aggregate processing, and slurry management for quality and process efficiency.

Chemical Processing

Monitoring concentration levels of acids, lyes, and chemical mixtures for continuous quality control in pipelines and storage tanks

Power plants

Contactless density monitoring of fluids and slurries for process control and quality assurance in thermal and hydroelectric power plants.

Food & Beverage

Determining sugar content and concentration in liquid mixtures for consistent product quality and process optimization in food processing plants.

Pharmaceuticals

Managing concentration and composition in liquid and powder formulations for stringent quality control without direct contact, ensuring compliance and process safety

Key
benefits

Measurement

Continuous, non-invasive density measurement without disrupting process flows

Construction

Robust, industrial-grade construction with secure and compliant radiation source containment

Mixtures

Versatile for liquids, bulk solids, slurries, or concentration in mixtures

Display

Simple, user-friendly operation with digital display and digital/analog outputs

Power Supply

Flexible power supply options and multiple signal outputs including 4-20mA and relay contacts

Installation
Types

  • The density meter is installed with a fixed and constant measurement distance, most commonly through pipelines or custom mountings on tanks or bunkers.
  • This ensures precise readings by maintaining a consistent radiation path length.
  • All installations are contactless, with no direct contact between the device and medium, ensuring safe and hygienic operation.

Mechnical & Technical
Specifications

Radiation Source

Artificial radioactive metal oxide (Cs-137) sealed in stainless steel capsule with lead shielding

Detector

NaI(Tl) Scintillation detector with photomultiplier, weight approx. 18 kg

Stability

 ±0.1% across 0-50°C ambient temperature

Evaluation Unit Dimensions

101.4mm (W) x 132.5mm (H) x 160mm (D)

Operating Temperature

 0°C to 55°C ambient

Why Choose Our Online Density Meter?

Gamma radiation emitted from a sealed radioactive source passes through the medium to be measured. The radiation intensity decreases proportional to the density of the material encountered. A scintillation detector on the opposite side detects the remaining radiation, converting it into electrical signals.
