Product Brief

The Lorry Weigh Bridge from IPA Pvt Ltd is a heavy-duty vehicle weighing system designed for optimal accuracy and reliability in industrial and commercial applications.

Available in multiple platform sizes and capacities up to 80 tons, it combines rugged mechanical construction with precision electronics for efficient and fast vehicle weight measurement.

Product
Description

This weighbridge features a robust pitless or pit-type installation ideal for site flexibility and minimal civil work. The platform is engineered for high overload capacity, using hermetically sealed strain gauge load cells and microcontroller-based electronics for stable and accurate output signals. The system interfaces with the Windows-based "BRIDGEWEIGH" software providing real-time data management and reporting.

The weigh bridge supports precise load measurements with high resolution (5 kg to 20 kg depending on model) and multiple platform dimensions (6m to 18m length by 3m width) to accommodate different vehicle sizes.

The load cells are double-ended shear beams, designed for durability and long-term stability, with approved certifications for quality assurance.

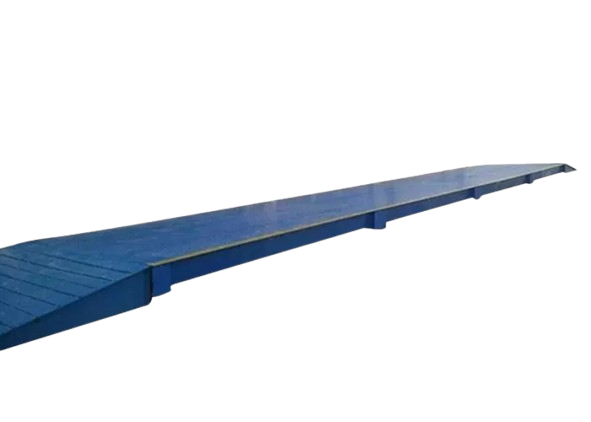

pl32812195-12m_heavy_duty_weighbridge_digital_lorry_weight_machine-removebg-preview

Product
Applications

Mining & Quarrying

Used to weigh trucks carrying coal, minerals, and crushed rock, ensuring compliance with load limits and accurate material tracking

Logistics and Transportation

Facilitates accurate measurement of loaded trucks for freight management, billing, and compliance with road safety regulations.

Construction and Building Materials

Monitors truck loads of cement, sand, steel, and aggregates, optimizing material handling and preventing overloading at construction sites.

Agriculture and Food Processing

Weighs trucks carrying crops, grains, or livestock feed to ensure fair trade practices and accurate inventory management.

Waste Management and Recycling

Measures incoming and outgoing loads of waste materials, aiding fee calculation, resource tracking, and regulatory compliance.

Manufacturing and Bulk Material Handling

Maintaining optimal moisture levels to prevent material degradation, clumping, or spoilage, ensuring better flowability.

Key
benefits

Overload Capacity

High overload capacity ensuring durability under heavy vehicle loads

Installation

Flexible pitless installation reduces civil construction and site prep costs

Accuracy

Precise weighing accuracy with stable digital load cell signals

Data Management

User-friendly "BRIDGEWEIGH" Windows software for easy operation and data management

Capacity

Multiple platform sizes and capacities tailor-made to customer requirements

Display

Remote display and serial interface options for seamless integration

Installation
Types

  • Flexible installation options including pitless and pit-type systems
  • Minimal civil construction required for pitless type permits faster deployment
  • Remote and on-site digital displays available for operational convenience
  • Platform and load cells mounting designed for stability and easy maintenance

Mechnical & Technical
Specifications

Platform sizes (L x W)

6m x 3m to 18m x 3m

Capacity range

30T to 80T (depending on platform size)

Resolution

5 kg to 20 kg threshold based on capacity

Load cell

Double-ended shear beam, hermetically sealed

Safe overload

 200%, Ultimate overload: 300%

Operating temperature

 5°C to 70°C

Junction box

Polycarbonate with robust connectors

Why Choose Our Lorry Weigh Bridge?

It operates using strain gauge load cells mounted under the platform, which convert the weight load into electrical signals. These signals are processed by microcontroller-based electronics with digital indicators displaying the weight.
