Product Brief

The HeiCon Contactless Continuous Level Measurement System delivers accurate, non-invasive monitoring of liquid or solid material levels in industrial vessels using advanced gamma radiation technology. With versatile integration, robust construction, and exceptional reliability, HeiCon ensures precise process control even in challenging or hazardous environments

Product
Description

HeiCon’s innovative level measurement solution utilizes gamma radiation to determine the exact fill level within closed tanks—without physical contact with the contents. The system consists of a sealed radioactive source and a sensitive scintillation detector installed externally, negating exposure to the process medium and providing maintenance-free operation.

The included HEICON 21 evaluation unit ensures signal accuracy by performing advanced linearization and calibration, further supported by digital communication options such as PROFIBUS DP and a 4–20 mA analog output

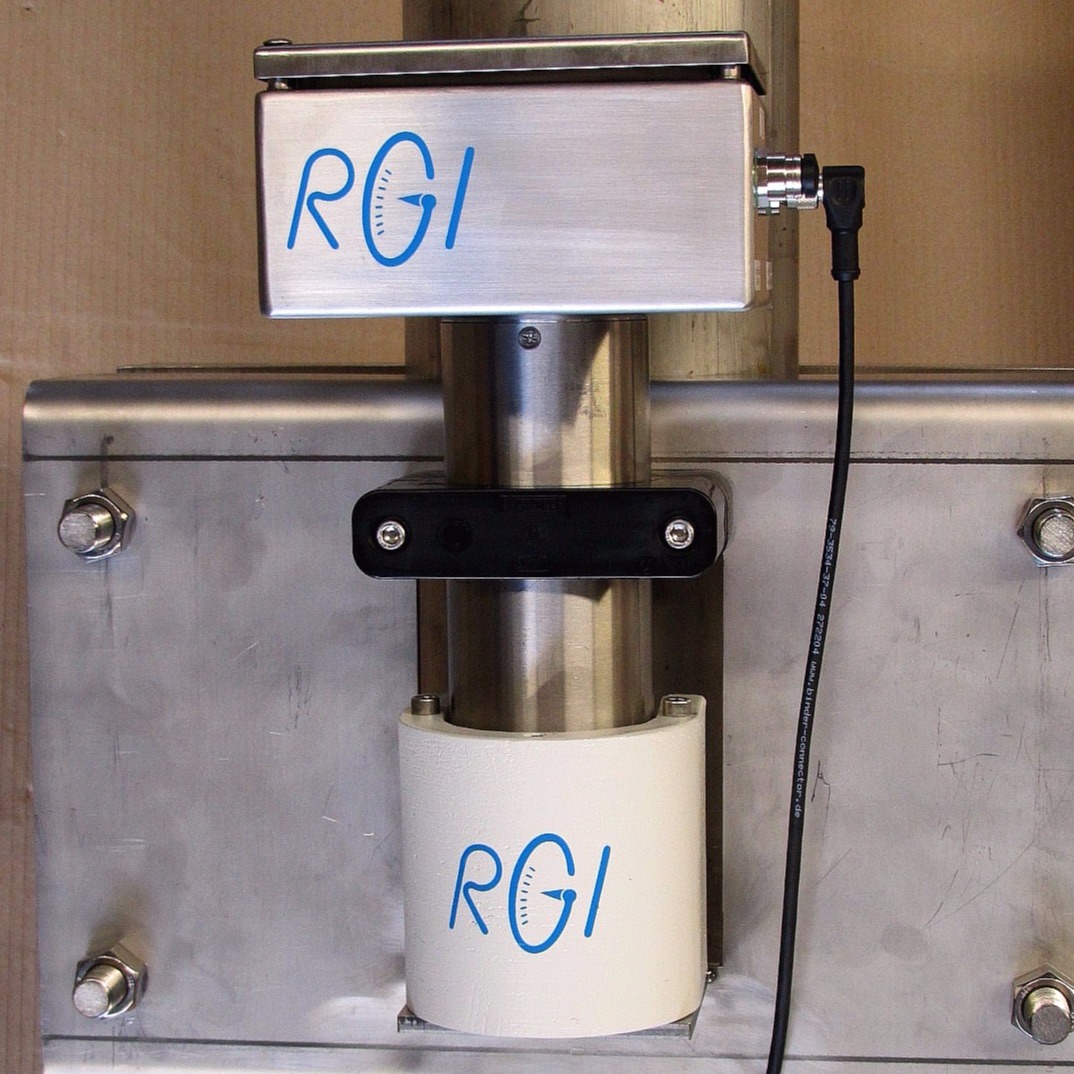

dd50-c-rohrmontage-frontal-1

Product
Applications

Mining & Minerals

Ideal for monitoring slurry, ore, or powder levels in silos, hoppers, and reactors, even in dusty or abrasive environments

Chemical Processing

For accurate monitoring of chemical tank levels, especially in corrosive or hazardous environments where intrusion is not possible.

Oil & Gas

Used for continuous level measurement in storage tanks, separators, or pipelines handling volatile, pressurized, or toxic materials.

Power Generation

Monitors ash, coal, or coolant levels in tanks and silos within power plants, handling extreme temperatures and challenging media

Food and Beverage

Ensures hygienic level monitoring in storage tanks containing liquids or bulk solids, preventing contamination due to non-contact measurement.

Pharmaceuticals

Maintains precise control of ingredient levels in reactors and storage vessels where cleanliness and accuracy are paramount

Key
benefits

Contactless measurement

No process penetration or contamination risk; all components remain outside the vessel.

Continuous, reliable monitoring

Provides a continuous signal for real-time level tracking, adjustable for multiple vessel sizes up to 2 meters.

Low maintenance

Detectors are built with robust, IP68+ stainless steel enclosures and require minimal servicing

High accuracy

Automatic linearization and calibration ensure precise results and compensate for vessel geometry or material changes

Flexible integration

 Interfaces with PLCs and modern control systems; supports relay outputs, alarms, and standard industrial protocols

Safety assured

Radiation sources are double-housed and rigorously tested for compliance with international safety regulations

Installation
Types

  • External mounting: Both the radiation source and detector are installed outside the vessel, permitting operation without intrusive fittings.

  • Flexible layout: Detectors can be assembled in sections for large or difficult-access tanks; connection distance up to 500 meters possible.

  • Shielded source: Multiple shielding options, including remotely operated push or rotating shutter mechanisms for access safety.

Mechnical & Technical
Specifications

Detector length

Customizable, up to 2 meters according to measurement range.

Construction

Stainless steel housing (minimum IP68-rated).

Weight

318 grams without additional housing.

Dimensions

101.4 mm (W) x 132.5 mm (H) x 160 mm (D).

Ambient temperature

0°C to 55°C for evaluation unit operation

Why Choose Our Continuous Level Measurement System?

The system emits a narrow gamma ray beam through the vessel from one side to a detector on the opposite side. Material inside the vessel absorbs a portion of the radiation; the level is inferred from the intensity drop detected
