Product Brief

The Belt Weigh Scale is an accurate and reliable system designed to measure the quantity of bulk materials conveyed on belts. It is ideally suited for mining and remote industrial applications.

Product
Description

This system combines high precision weighing technology with robust hardware including a 32-bit ARM CPU-based panel controller and customized PC software for data logging and reporting.

Optional sensors like speed and angle sensors enhance accuracy, and it supports explosion-proof zones. The Flex-o-Weigh arrangement ensures accuracy even at low belt loads.

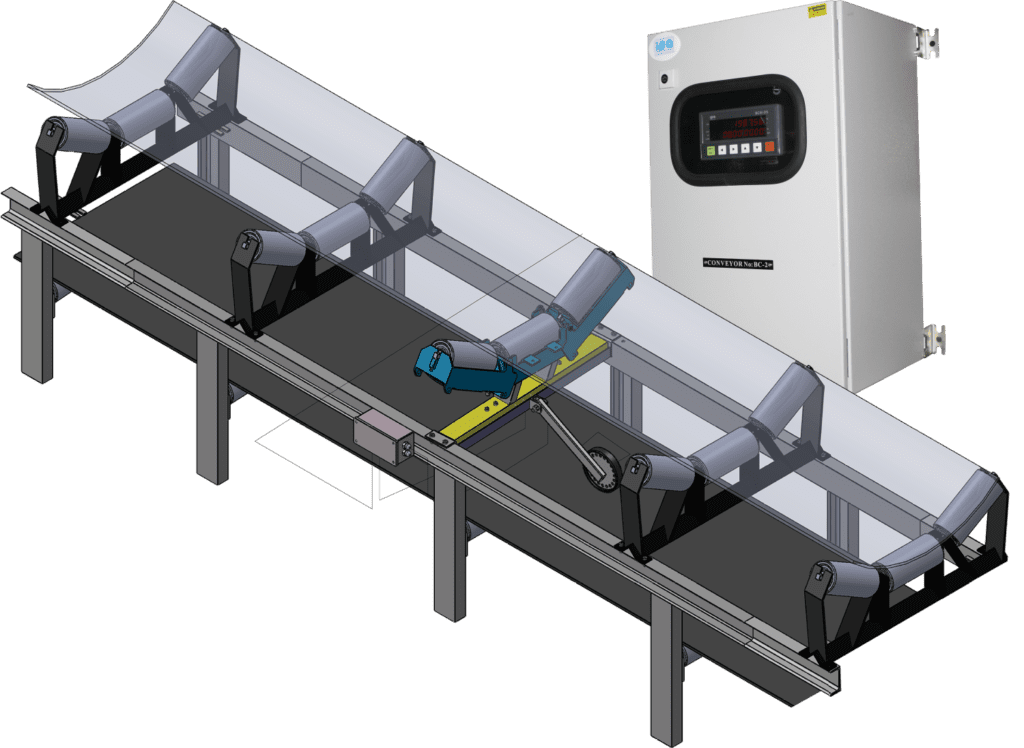

Belt-Weigher

Product
Applications

Mining & Minerals

Precise bulk material measurement to optimize mining process efficiency and accountability.

Material processing plants

Accurate monitoring of material flow to enhance process control and productivity.

Bulk material transportation

Reliable weighing solutions for tracking and managing transported material volumes.

Remote industrial facilities

Robust and low-maintenance weighing systems designed for harsh, inaccessible locations.

Stacker and reclaimer systems

Integrated weight measurement for effective control of material stacking and reclaiming operations.

Process control

High-accuracy bulk material measurement ensuring precise inventory and process management.

Key
benefits

Accuracy

High accuracy with system accuracy up to 0.25% depending on configuration

Enviornments

Suitable for harsh environments, including explosion-proof zones

Belt Width

Supports belt widths from 500 mm to 3000 mm and capacities from 0.5 to 5000 tons

Controller

Advanced 32-bit ARM CPU controller with high-speed arithmetic processing

Software

Comprehensive data logging and reporting with customized software

Applications

Optional angle sensor for applications such as stacker reclaimers

Hardware

Robust hardware with IP55 ingress protection and versatile communication options including RS485 and Modbus RTU

Installation
Types

  • Designed for easy installation and maintenance in harsh industrial environments, including explosion-proof zones.
  • The system measures the weight of material conveyed on the belt by capturing belt speed and load cell data.
  • Signals are processed by a high-speed ADC to calculate accurate material flow rates and total transferred load.

Mechnical & Technical
Specifications

Operating Voltage

AC 220 V ± 15%, 50/60 Hz

Power Consumption

15 W Max

Operating Temperature

 -25°C to +55°C

Digital Promximity

Digital proximity pulses, 5-300 Hz frequency range

Angle Sensor

0.5 degree accuracy, designed for industrial use

Why Choose Our Belt Weigh Scale?

The Belt Weigh Scale system offers precise, reliable bulk material measurement optimized for mining and process industries. With rugged hardware, advanced sensors, and customizable software, it ensures operational efficiency even in harsh and remote environments with explosion-proof certification.
