Product Brief

Coat-Endure is a compact admittance level limit switch specifically designed for sticky solids and pastes.

It is highly effective in packaging plants where materials tend to adhere to the probe, ensuring reliable level detection even in challenging conditions.

Product
Description

Coat-Endure uses an advanced admittance principle with a ring-type probe having alternating active and inactive regions. This structure allows the device to measure differential coating on the probe surface.

Controlled by an onboard microcontroller, the switch offers immunity against buildup and ensures precise level monitoring of conductive and non-conductive media, including fluffy powders and pastes.

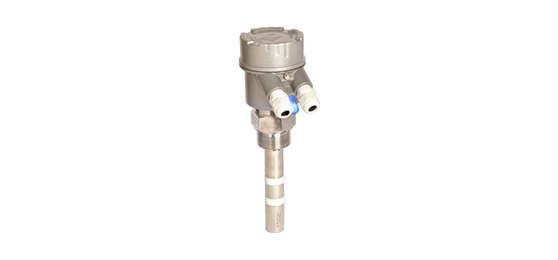

sapcon process-control-4

Product
Applications

Dairy Industry

Reliable admittance level switches ensure precise level control in dairy processing tanks and storage vessels.

Pharmaceuticals

The switches provide accurate point-level detection for liquids and powders in pharmaceutical manufacturing.

Chemicals

Robust admittance switches monitor harsh chemical tank levels with high resistance to build-up and coating.

Foundry

Durable admittance level sensors manage bulk material levels like sand and slag in foundry processes.

Food & Beverages

Ensure consistent ingredient levels and process control in food and beverage production with admittance switches.

Material Handling

Accurate level detection of solids and liquids in bulk material handling systems with admittance level switches

Key
benefits

Material

Immune to buildup and coating of application material

Design

Compact design with a minimal probe length of 65mm

Shielding

Passive shielding compensation for accuracy

Controls

Microcontroller-based for easy setting of coating immunity

Diagnosis

Self-diagnosis to prevent installation errors

IP68

Robust IP68 rating housing with flameproof options

Installation
Types

  • Coat-Endure can be installed using top mounting or side mounting methods.
  • An optional baffle is available for protection against material stress at low levels.

Mechnical & Technical
Specifications

Housing

Pressure die-cast aluminium with flameproof design

Mounting Options

Threaded (1/2", 3/4", 1 1/2", 2" BSP/NPT) or Flanged as per requirement

Cable Entry

 2 x 1/2" BSP/NPT or PG 13.5

Probe Length

Rod Probe from 65mm (min) to 3500mm (max), Rope Probe from 1000mm (min) to 5m (max)

Why Choose Our Admittance Level Limit Switch?

The device operates on an enhanced admittance principle, using a microcontroller to analyze the capacitance difference between the sense and shield areas on a ring-type probe. This differential measurement helps to detect the level of sticky or coated materials accurately and maintain immunity against coating buildup.
